Gabriel Tube Fittings, located in Cairo, Egypt, is a well-respected manufacturer and supplier of precision-engineered industrial components, including T-port ball valves. Renowned for their outstanding quality, durability, and performance, Gabriel’s T-port ball valves are expertly crafted to manage and redirect fluid flow in various directions within intricate piping systems. Each valve is produced using cutting-edge technology and top-notch materials, ensuring leak-proof functionality, user-friendliness, and a long lifespan. Catering to both local and international markets, Gabriel Tube Fittings delivers dependable and cost-effective flow control solutions for a wide array of industrial applications.

T Port Ball Valve Supplier in Cairo, 3 way T-port Floating Ball Valve Price List in Alexandria, 3 ASME B16.5 2013 Ball Valve Manufacturer in Giza, T Port End Flanged Ball Valve in Port Said, ASTM A479 SS316 Ball Valve Exporter in Alexandria, ASTM A216 WCB Manufacturer in Cairo, ASTM A216 WCB Ball Valve In Cairo, Egypt.

T-port ball valves are generally constructed from high-quality materials like stainless steel, brass, or carbon steel, selected for their remarkable resistance to corrosion, mechanical strength, and ability to handle pressure. These valves boast a three-way design with a “T”-shaped bore in the ball, allowing for different flow path options—mixing, diverting, or shutting off. Their mechanical features include high tensile strength, low torque operation, and excellent sealing performance. Built to last, their sturdy construction guarantees reliability and performance even in challenging industrial settings.

T Port Ball Valve Specification

TYPE :	3 way T-port Floating Ball Valve
PORT :	Full Bore
SIZE :	15 mm to 100mm NB
Pressure Rating :	ASME #150PN 20 ASME #300PN 50
Temperature Range	35 Deg C to 280 Deg C (Soft Seated)
Body Materials	Stainless Steel / Carbon Steel / Alloys
Design Standard	API 6D rev 23; ISO 17292 rev 2004
End Flanges	ASME B16.5 2013
Face to Face Dimension	Non Standard , As per Manufacturer Std
Fire safe design	API-607 Rev 2010
Testing	API 598 Rev 2009
Sour Service	NACE MOR 0175 Rev 2009
Documents	BS/EN 10204-3.1 REV 2004

T Port Ball Valve Supplier in Cairo, 3 way T-port Floating Ball Valve Price List in Alexandria, 3 ASME B16.5 2013 Ball Valve Manufacturer in Giza, T Port End Flanged Ball Valve in Port Said, ASTM A479 SS316 Ball Valve Exporter in Alexandria, ASTM A216 WCB Manufacturer in Cairo, ASTM A216 WCB Ball Valve In Cairo, Egypt.

Top T Port Ball Valve Manufacturing Company in Cairo

At Gabriel Tube Fittings, we are the largest supplier, manufacturer, and exporter of T Port Ball Valve in Cairo, Egypt. Our advanced manufacturing facilities, strategically positioned in the Egypt, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfill your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands

Material Code for T Port Ball Valve

SR.NO.	PART NAME	STAINLESS STEEL	CARBON STEEL	QTY
1	BODY	ASTM A351 CF8M	ASTM A216 WCB	1
2	END CONN.	ASTM A351 CF8M	ASTM A216 WCB	1
3	END CONN. SIDE	ASTM A351 CF8M	ASTM A216 WCB	1
4	END CONN. BACK	ASTM A351 CF8M	ASTM A216 WCB	1
5	BALL	ASTM A276 SS316	ASTM A276 SS316	1
6	STEM	ASTM A479 SS316	ASTM A479 SS316	1
7	SEAT	PTFE	PTFE	2
8	SEAT SEAL	GRAPHITE / INCONEL	GRAPHITE / INCONEL	2
9	GLAND	SS316	MS	1
8	GLAND BEARING	DELRIN	DELRIN	1
10	SPACER	SS316	SS316	1
12	STEM THRUST WASHER	GFT	GFT	1
13	BODY SEAL	GRAPHITE	GRAPHITE	1
14	STEM O-RING	VITON	VITON	1
15	BODY SEAL	GRAPHITE	GRAPHITE	2
16	END CONN. O-RING	VITON	VITON	2
17	CAVITY	PTFE	PTFE	2
18	STUD	ASTM A193 GR.B8M	ASTM A193 GR.B7	4
19	NUT	ASTM A193 GR.8M	ASTM A193 GR.2H	4
20	STUD	ASTM A193 GR.B8M	ASTM A193 GR.B7	4
21	NUT	ASTM A193 GR.8M	ASTM A193 GR.2H	4
22	STUD	ASTM A193 GR.B8M	ASTM A193 GR.B7	4
23	NUT	ASTM A193 GR.8M	ASTM A193 GR.2H	4
24	LEVER	SS410	SS410	1
25	ALLEN BOLT	MS	MS	1
26	STOPER	MS	MS	1

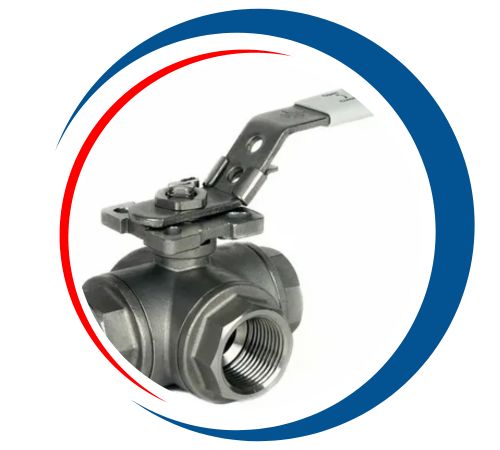

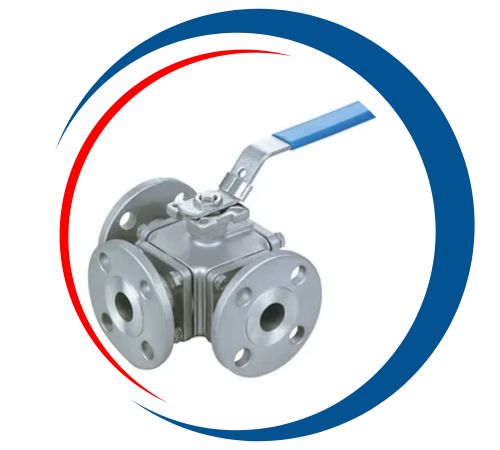

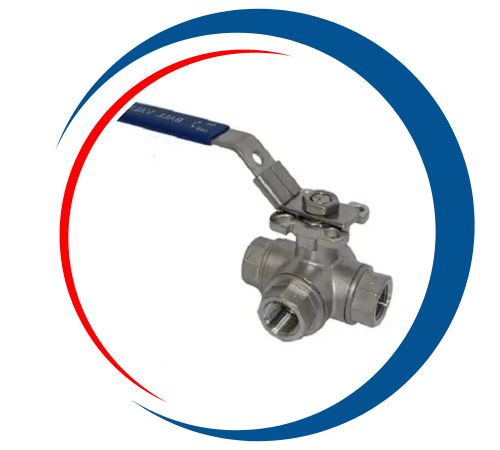

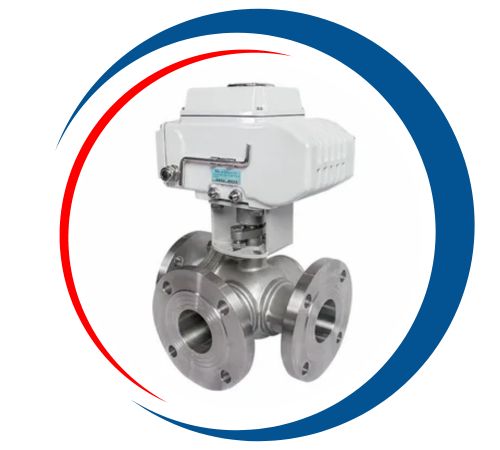

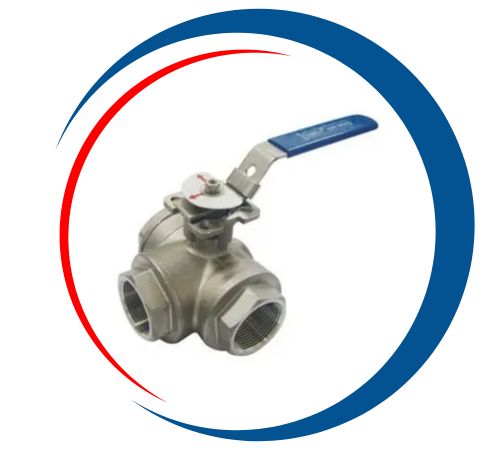

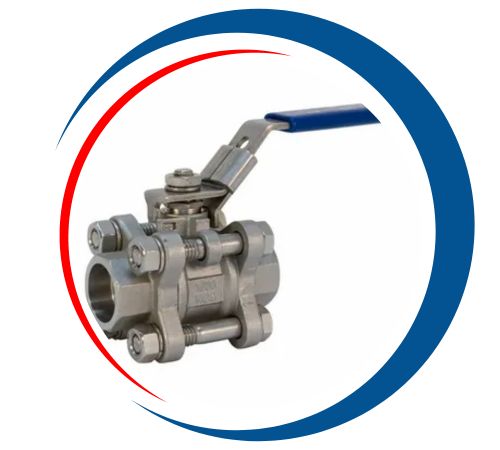

Types of T Port Ball Valve

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

T Port Ball Valve Supplier in Cairo, Egypt

T-port ball valves find extensive use in sectors such as oil and gas, chemical processing, water treatment, and HVAC systems, providing precise control over flow direction and distribution. They facilitate the efficient management of multiple fluid streams without the need for extra piping or valves. Their adaptability makes them perfect for situations that require mixing or diverting fluids. With their smooth operation, resistance to corrosion, and maintenance-free design, T-port ball valves from Gabriel Tube Fittings ensure safe, efficient, and flexible flow control across a broad spectrum of industrial processes.

T Port Ball Valve Uses

T Port Ball Valves are widely used in various industries due to their versatility and efficient flow control capabilities. In the oil and gas sector, they facilitate fluid diversion and mixing in pipelines. In water treatment facilities, they regulate water flow and chemical dosing. Chemical processing industries utilize them for handling corrosive substances and ensuring safety. Additionally, T Port Ball Valves are employed in HVAC systems for temperature control and in food processing for managing fluid transfer. Their reliability and ease of maintenance make them an essential component in many fluid management applications.
