Monel Ball Valve

Home > Monel > Monel Ball Valve

Gabriel Tube Fittings is a top-notch manufacturer and supplier located in Cairo, Egypt, specializing in high-quality **Monel Ball Valves** that are perfect for ensuring reliable flow control in tough industrial settings. These valves are designed to provide precise shutoff and regulation of both liquids and gases, all while boasting impressive resistance to corrosion and wear. Adhering to strict international standards, Gabriel Tube Fittings guarantees that each Monel Ball Valve operates leak-proof, is durable, and delivers long-lasting performance, making them a great fit for critical applications in harsh and corrosive environments.

Monel Instrumentation Ball Valve Manufacturer in Cairo, Monel Alloy Compression Ball Valve in Port Said, Monel Hydraulic Ball Valve Supplier in Alexandria, Monel High Pressure Ball Valve Price List in Cairo, Monel 2 Way Ball Valve Price in Port Said, Monel Alloy 3 Way Ball Valve in Cairo, Egypt, Monel 4 Way Ball Valve Price in Giza, Monel 5 Way Ball Valve Supplier in Alexandria, Monel High Pressure Ball Valve Price List in Cairo

Monel Ball Valves are crafted from a nickel-copper alloy, typically made up of about 67% nickel and 30% copper, along with small amounts of iron and manganese. This unique blend gives them remarkable resistance to seawater, acidic and alkaline solutions, and oxidizing agents. They also feature a high tensile strength ranging from approximately 580 to 750 MPa, along with excellent toughness and dependable mechanical performance, even in high-pressure and high-temperature situations.

Monel Ball Valve Specifications

STANDARD	ASTM A494 / ASME SA494 API 600/BS1414, ASME B 16.34, ASME B 16.10, ASME B 16.5, API 598/BS EN 12266-1,ASME B 16.25
VALVE SIZE	1/8″ TO 2″ / 6 MM TO 50 MM
THREAD	NPT, BSPP, BSPT, JIC, METRIC, UNF
CONNECTION	THREADED, TUBE END, BUTT WELD, SOCKET WELD, WELD NIPPLE, FLANGED, SAE
FUNCTION	2 WAY, 3 WAY, 4 WAY, 5 WAY,
PRESSURE RATING	1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15000 PSI, 20000 PSI
SEAL RING MATERIAL	PTFE, PVDF, DELRIN, PEEK, GRAPHITE
STANDARD	ISO , DIN , ANSI , API , ASME , AWWA , MSS ,
MEDIA	HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER , COLD WATER , SEA WATER , CHEMICAL
MEDIA TEMPERATURE	(-120* C TO 500*C )RANGE AS PER PRESSURE
BODY TYPE	BAR STOCK
PACKING DETAILS	BOX PACKING, WOODEN PALLET
APPLICATION	MATERIAL HANDLING EQUIPMENT, EARTH MOVING MACHINERIES , POWER GENERATING PLANT , STEEL MANUFACTURING PLANT , MINING INDUSTRIES , CHEMICAL PROCESSING MACHINES , PIPING LINE , PAINT INDUSTRIES , TRUCKS AND TRAILERS , AUTOMATION , AGRICULTURE MACHINES , AEROSPACE & DEFENCE EQUIPMENTS,

Monel Ball Valve Chemical Composition

Material	C	Mn	Si	S	Cu	Fe	Ni	Cr
Monel	0.30 max	2.00 max	0.50 max	0.24max	28.0-34.0	2.50 max	63.00 min	–

Monel Ball Valve Mechanical Properties

Element	Yield Strength (0.2%Offset)	Melting Point	Density	Elongation	Tensile Strength
Monel	Psi – 35,000 , MPa – 240	1350 °C (2460 °F)	8.8 g/cm3	40 %	Psi – 80,000 , MPa – 550

Monel Ball Valve Equivalent

STANDARD

WNR Material Number

UNS

JIS

GOST

AFNOR

Monel 400

2.4360

N04400

NW 4400

NA 13

МНЖМц 28-2,5-1,5

NU-30M

NiCu30Fe

Top Monel Ball Valve Manufacturing Company in Cairo

At Gabriel Tube Fittings, we are the largest supplier, manufacturer, and exporter of Monel Ball Valve in Cairo, Egypt. Our advanced manufacturing facilities, strategically positioned in the Egypt, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

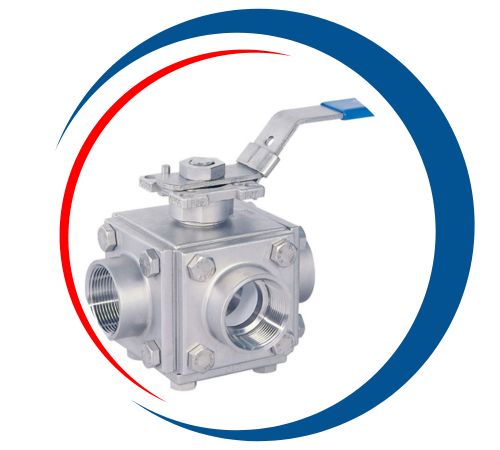

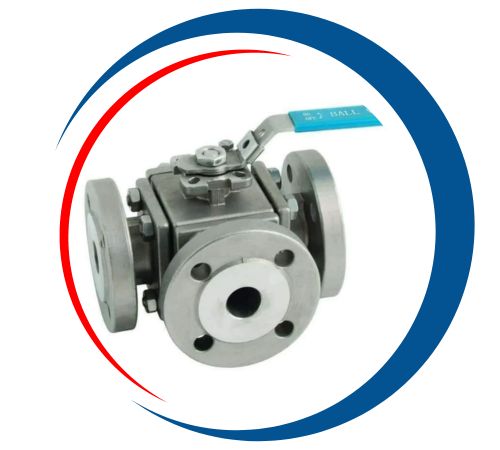

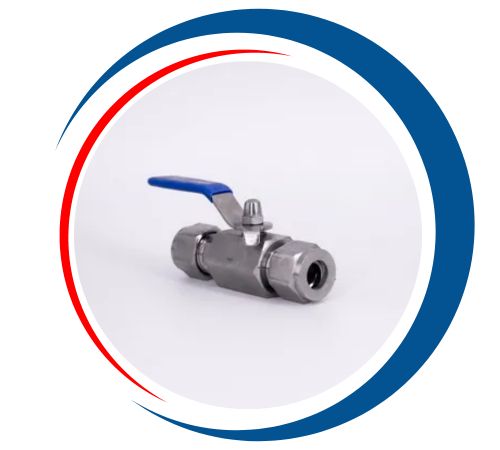

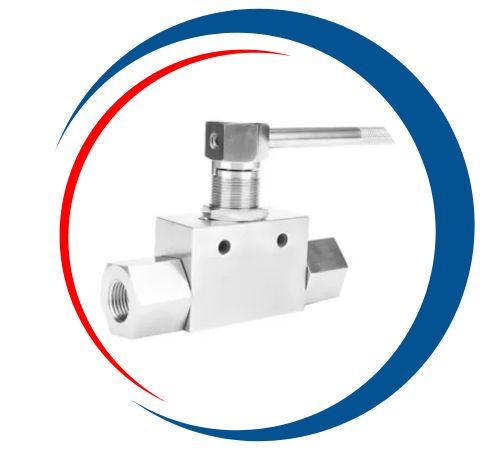

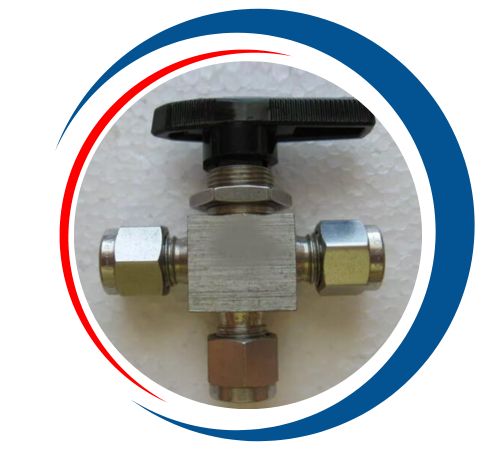

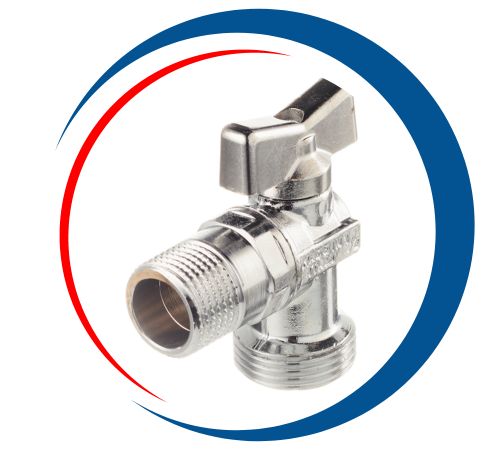

Types of Monel Ball Valve

Monel Alloy High Pressure Ball Valve in Port Said, Monel 2 Way Ball Valve Supplier in Alexandria, Monel 3 Way Ball Valve in Cairo, Egypt, Monel Alloy 3 Way Ball Valve Price List in Cairo, Monel 5 Way Ball Valve Price in Port Said, Monel Instrumentation Ball Valve Price in Giza, Monel Compression Ball Valve Supplier in Alexandria, Monel Hydraulic Ball Valve Manufacturer in Cairo

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Monel Ball Valve in Cairo, Egypt

These Monel Ball Valves find their place in various industries, including oil and gas, petrochemical, marine engineering, chemical processing, and desalination. They are particularly well-suited for pipelines and systems that transport seawater, brine, acids, and other aggressive fluids, where leak-free and durable flow control is essential. With their combination of corrosion resistance, strength, and reliability, Monel Ball Valves are the go-to choice for demanding industrial and marine applications.

Monel Ball Valves Uses

Monel ball valves are widely used in applications requiring reliable operation at high temperatures. Because of their excellent resistance to salt water, they are ideal for marine applications such as seawater systems and desalination plants. These valves are also commonly used in the chemical, petrochemical, and oil and gas industries to handle highly acidic, alkaline, and chloride waters In addition, Monel ball valves are suitable for offshore drilling , energy generation, and heat exchanger, including high strength , Corrosion resistance is also important Their durability and resistance to harsh conditions make them perfect for demanding industrial applications.
