Inconel Ball Valve

Home > Inconel > Inconel Ball Valve

**Gabriel Tube Fittings**, located in Cairo, Egypt, stands out as a premier manufacturer and supplier of high-performance **Inconel Ball Valves**. These valves are expertly designed for secure shut-off and flow control in environments that are extremely corrosive, high-pressure, and high-temperature. They’re built for critical applications where traditional materials might fail due to chemical exposure or thermal breakdown.

Inconel Instrumentation Ball Valve Manufacturer in Cairo, Inconel Alloy Compression Ball Valve in Port Said, Inconel Hydraulic Ball Valve Supplier in Alexandria, Inconel High Pressure Ball Valve Price List in Cairo, Inconel 2 Way Ball Valve Price in Port Said, Inconel Alloy 3 Way Ball Valve in Cairo, Egypt, Inconel 4 Way Ball Valve Price in Giza, Inconel 5 Way Ball Valve Supplier in Alexandria, Inconel High Pressure Ball Valve Price List in Cairo

Made from **Inconel alloys** like **Inconel 625** or **Inconel 718**, these ball valves boast **outstanding resistance to oxidation, pitting, crevice corrosion, and chloride-induced stress corrosion cracking**. With their impressive strength and stability at temperatures over 1000°C (1830°F), they’re perfectly suited for demanding sectors such as **chemical processing, offshore oil & gas, nuclear power, aerospace, and marine engineering**.

Inconel Ball Valve Specifications

SPECIFICATION	ASTM A494 / ASME SA494 API 602, ASME B16.34, SME B16.5, ASME B16.25, ASME B1.20.1, ASME B16.11, ASME B16.10, BS 5352, DIN3352
VALVE SIZE	1/8″ TO 2″ / 6 MM TO 50 MM
THREAD	NPT, BSPP, BSPT, JIC, METRIC, UNF
CONNECTION	THREADED, TUBE END, BUTT WELD, SOCKET WELD, WELD NIPPLE, FLANGED, SAE
FUNCTION	2 WAY, 3 WAY, 4 WAY, 5 WAY,
PRESSURE RATING	1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15000 PSI, 20000 PSI
SEAL RING MATERIAL	PTFE, PVDF, DELRIN, PEEK, GRAPHITE
STANDARD	ISO , DIN , ANSI , API , ASME , AWWA , MSS ,
MEDIA	HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER , COLD WATER , SEA WATER , CHEMICAL
MEDIA TEMPERATURE	(-120* C TO 500*C )RANGE AS PER PRESSURE
BODY TYPE	BAR STOCK
PACKING DETAILS	BOX PACKING, WOODEN PALLET
APPLICATION	MATERIAL HANDLING EQUIPMENT, EARTH MOVING MACHINERIES , POWER GENERATING PLANT , STEEL MANUFACTURING PLANT , MINING INDUSTRIES , CHEMICAL PROCESSING MACHINES , PIPING LINE , PAINT INDUSTRIES , TRUCKS AND TRAILERS , AUTOMATION , AGRICULTURE MACHINES , AEROSPACE & DEFENCE EQUIPMENTS,

Inconel Ball Valve Chemical Composition

Material		C	Mn	Si	Fe	S	Cr	Cu	Ni
Inconel	min.	–	–	–	6.0	–	14.0	–	72.0
Inconel	max.	0.15	1.0	0.5	10.0	0.015	17.0	0.5	–

Inconel Ball Valve Mechanical Properties

Material	Elongation (% in 50mm) min	Strength of Yield 0.2% Proof (MPa) minimum	Strength of Tensile (MPa) minimum	Hardness
				Rockwell B (HR B) maximum	Brinell (HB) maximum
Inconel	40	Psi – 45,000 , MPa – 310	Psi – 95,000 , MPa -655	–	–

Inconel Ball Valve Equivalent

Material	UNS No	Old British		Euronorm		GOST	Japanese JIS
		BS	En	No	AFNOR
Inconel	N06600	NA 13	NiCr15Fe	2.4816	NC15FE11M	МНЖМц 28-2,5-1,5	NCF 600

Top Inconel Ball Valve Manufacturing Company in Cairo

Gabriel’s **Inconel Ball Valves** feature a **quarter-turn design** with a precision-machined floating or trunnion-mounted ball, ensuring dependable shut-off and smooth operation. They come in **2-way and 3-way configurations**, with various end connections like **NPT, BSP, socket weld, and flanged** types, and can handle pressure ratings up to **6000 PSI**, depending on the design and size.

Types of Inconel Ball Valve

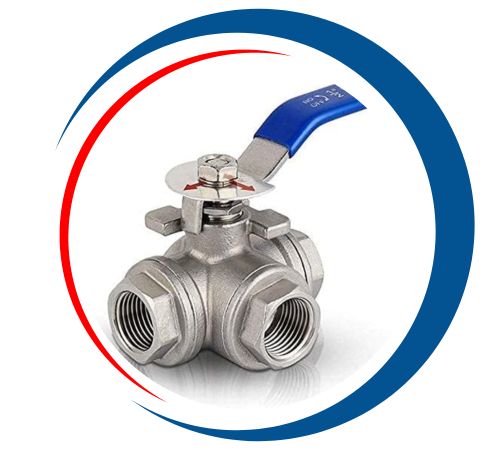

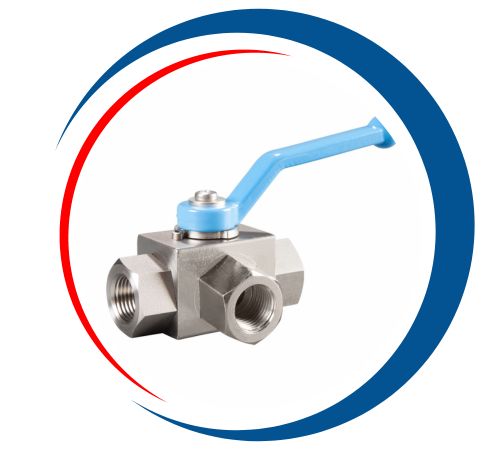

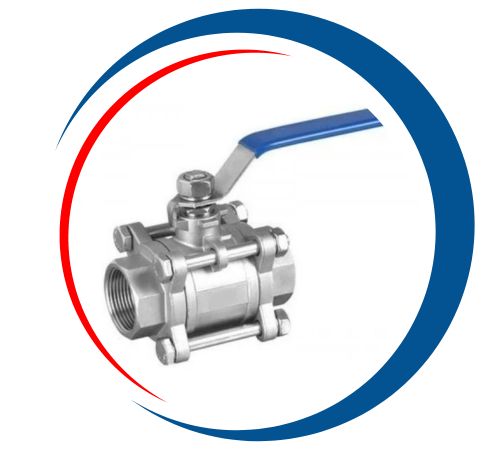

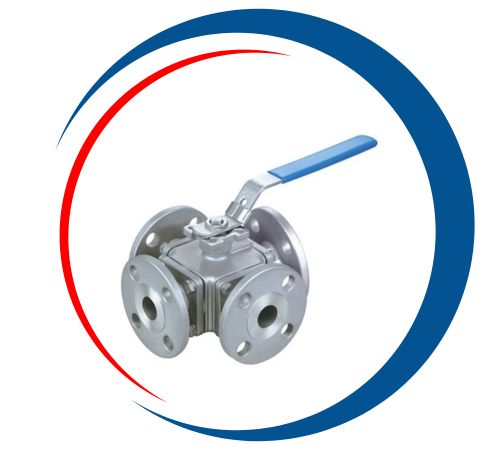

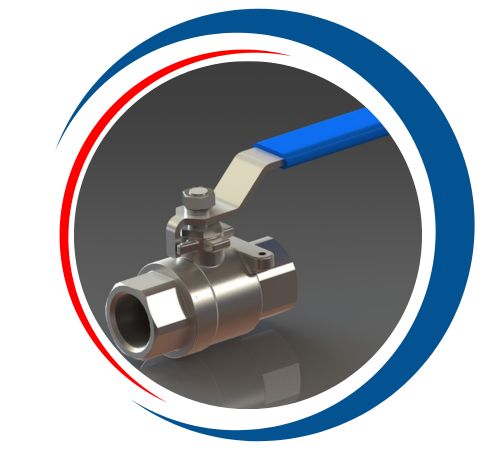

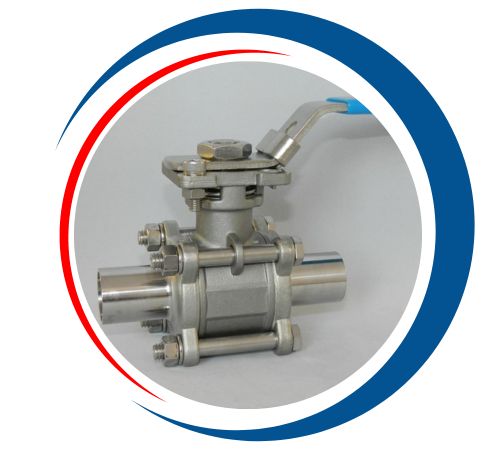

Inconel 3 Way Ball Valve in Cairo, Egypt, Inconel Alloy 3 Way Ball Valve Price List in Cairo, Inconel 5 Way Ball Valve Price in Port Said, Inconel Instrumentation Ball Valve Price in Giza, Inconel Compression Ball Valve Supplier in Alexandria, Inconel Hydraulic Ball Valve Manufacturer in Cairo, Inconel Alloy High Pressure Ball Valve in Port Said, Inconel 2 Way Ball Valve Supplier in Alexandria

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Inconel Ball Valve in Cairo, Egypt

These valves promise a long service life, excellent leak protection, and minimal maintenance, even in the toughest process conditions. Gabriel’s dedication to quality guarantees that every Inconel valve adheres to rigorous international standards for safety, performance, and durability.

Inconel Ball Valves Uses

Inconel ball valves are widely used in applications requiring high performance under extreme conditions. Ideal for applications in oil and gas, petrochemical and chemical processing, marine industries. Where they consume corrosive fluids, high temperatures and pressures. These valves are suitable for monitoring solid chemicals, seawater and acidic gas flows on. The unique resistance to oxidation and corrosion makes them perfect for offshore mining, refining and power plants. In addition, Inconel ball valves are used in aerospace and thermal applications, providing reliability and safety in harsh environments.
