Duplex Stainless Steel Condensate Pots

Home > Duplex Steel> Duplex Stainless Steel Condensate Pots

Gabriel Tube Fittings is a well-respected manufacturer and supplier located in Cairo, Egypt, with a focus on top-notch Duplex Stainless Steel Condensate Pots. These pots are expertly designed to gather and temporarily hold condensate in steam and fluid systems, which helps maintain efficiency and accuracy in pressure measurements. Known for their precision manufacturing and high-quality standards, Gabriel Tube Fittings delivers reliable performance. Their Duplex Stainless Steel Condensate Pots are built to withstand tough industrial conditions, offering outstanding resistance to corrosion, stress cracking, and fatigue, making them a go-to choice for demanding industrial and process applications.

Duplex Stainless Steel Type A Condensate Pots with 2 Ports Manufacturer Cairo, Duplex Stainless Steel Type B Condensate Pot with Red Oxide Coated Dealer Alexandria, S31803 Duplex Stainless Steel Condensate Pots Type C Supplier Giza, 2205 Duplex Stainless Steel Type A Condensate Pot Exporter In Port Said, Duplex Stainless Steel Type B Condensate Pots with 3 Ports Manufacturer Cairo, Duplex Stainless Steel Type C Condensate Pot with Galvanized Plating Cairo, Egypt.

The composition of Duplex Stainless Steel Condensate Pots primarily includes chromium (22%), nickel (5–6%), and molybdenum (3%), along with nitrogen to boost strength and corrosion resistance. This unique alloy features a dual-phase microstructure that harmonizes ferritic and austenitic properties. The material showcases impressive tensile strength, excellent toughness, and remarkable resistance to pitting, crevice, and stress corrosion cracking. With a yield strength of about 450 MPa and a tensile strength reaching up to 620 MPa, these pots are built to last in high-pressure and high-temperature environments.

Duplex Stainless Steel Condensate Pots Specifications

Standard : DIN, ASTM, BS and all International Standards.
Number of Ports : 2 ports upto 8 ports, refer to the section below for arrangements.
Working Pressure : 6000 PSIG(41.34 MPa).
Pressure Rating : 1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI.
Header Inlet : 1” Female Bsp or Npt threaded to ASME B16.1 or Flanged inlet optional.
Header Outlet/drain : None / or ¼”Male Bsp or Npt threaded to ASME B16.1 or 150# cast fitting.
Pipe size : 2″, 3″, 4″, 5”, 6” and larger size upon request.
Pipe Schedule : 40, 80, 160, XX seamless pipe.
Total Length : Pipe length 8″,10″,12″ and larger length upon request.
Thread Connections : NPT as per ANSI B1.20.1,Socket weld as per ANSI B16.11, Butt weld as per ANSI B16.9.

Sizing Of Duplex Stainless Steel Condensate Pots

P NPT – F	Capacity (Internal Vol.0)cm 3±5%	Pressure Rating PSIG	T mm	L mm	B mm
1/4”	150	1800	2.05	135	50.08
1/4”	300	1800	2.05	225	50.08
1/4”	400	1800	2.05	290	50.08
1/4”	500	1800	2.05	350	50.08
1/4”	1000	1800	4.06	275	88.09
1/4”	2250	1800	5.02	435	120
1/4”	3785	1800	5.02	680	120
1/2”	1000	1800	4.06	275	88.09
1/2”	2250	1800	5.02	435	102
1/2”	3785	1800	5.02	680	102
3/4”	1000	1800	4.06	275	88.09
3/4”	2250	1800	5.02	435	102
3/4”	3785	1800	5.02	680	102

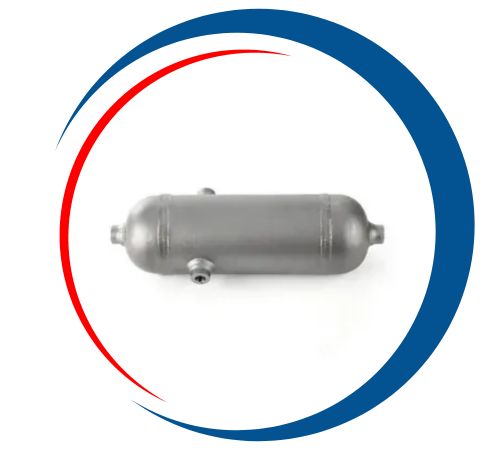

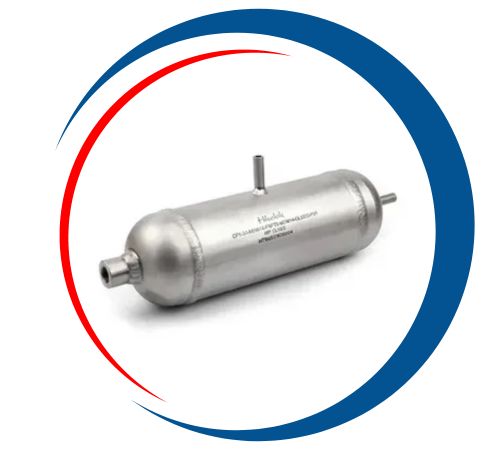

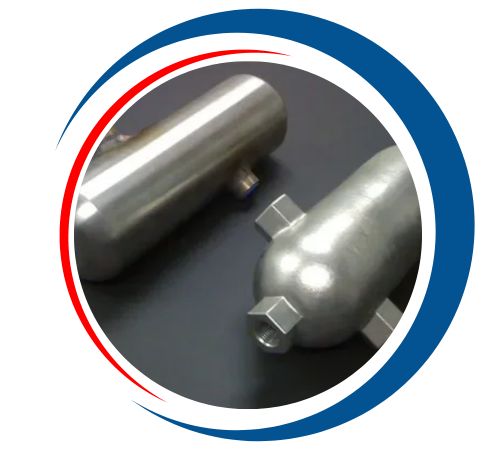

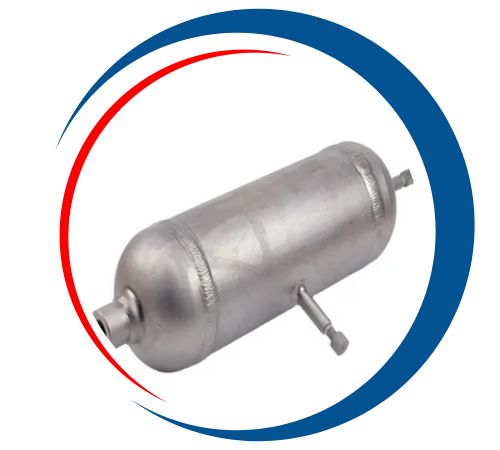

Types of Duplex Stainless Steel Condensate Pots

Duplex Stainless Steel Type A Condensate Pot with Zinc Plating Price in Cairo, DSS Type B Condensate Pots Supplier in Alexandria, 2205 Duplex Stainless Steel Type C Condensate Pot Manufacturer in Giza, Duplex Stainless Steel Type A Condensate Pot with Galvanized Plating Manufacturer & Price in Port Said, Duplex Stainless Steel Condensate Pot Type B Supplier in Cairo, Duplex Stainless Steel Type C Condensate Pot with Red Oxide Coated In Cairo, Egypt.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Duplex Stainless Steel Condensate Pots in Cairo, Egypt

At Gabriel Tube Fittings, We are proud to be the largest supplier, manufacturer, and exporter of Duplex Stainless Steel Condensate Pots in Cairo, Egypt Our cutting-edge solutions cater to all your piping needs. With state-of-the-art production facilities strategically located in the Egypt, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring we have the stock readily available to meet your demands.

Duplex Stainless Steel Condensate Pots Uses

Duplex Stainless Steel Condensate Pots find extensive application in steam pipelines, chemical plants, power generation, and the oil & gas sectors. They are perfect for capturing and retaining condensate from steam lines, which helps prevent damage to instrumentation and ensures precise pressure readings. Additionally, these condensate pots are utilized in systems that require steady fluid flow and protection for sensitive gauges. Their exceptional strength and corrosion resistance make them ideal for harsh environments, offshore platforms, and refineries, where reliability, safety, and performance are essential for maintaining operational efficiency.
