PP Ball Valve

Home > PP Ball Valve

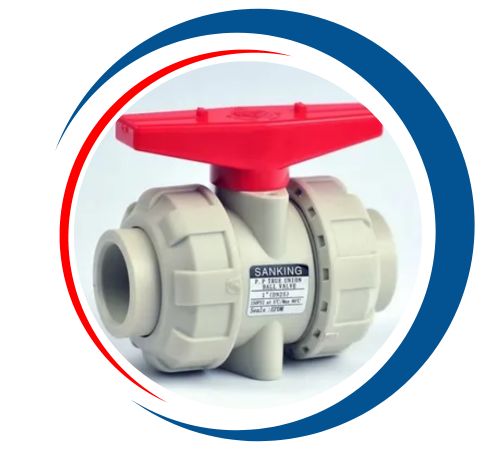

Gabriel Tube Fittings is a reputable manufacturer and supplier located in Cairo, Egypt, focusing on producing top-notch PP Ball Valves. These valves are crafted to provide outstanding performance, durability, and resistance to chemicals, making them perfect for a variety of industrial uses. Thanks to cutting-edge manufacturing methods and rigorous quality control, Gabriel Tube Fittings guarantees dependable flow control solutions that align with international standards. PP Ball Valves are not only lightweight and cost-effective but also resistant to corrosion, ensuring smooth operation and a long lifespan, which makes them ideal for managing different fluids in critical systems.

PP ball valve Manufacturer In Cairo, PP ball valve In Alexandria, PP ball valve Giza, PP ball valve Port Said. PP ball valve Jebel Ail, PP ball valve Supplier In Cairo, Egypt.

The PP Ball Valve is constructed from high-quality polypropylene (PP), a thermoplastic polymer celebrated for its remarkable chemical resistance and durability. The components of the valve are designed to endure exposure to corrosive substances without breaking down. It boasts impressive tensile and impact strength, dimensional stability, and temperature resilience. Its lightweight design makes installation a breeze and keeps maintenance to a minimum. The smooth inner surface reduces pressure drop and promotes efficient flow. These mechanical attributes make PP Ball Valves a trustworthy, long-lasting, and economical choice for fluid control needs.

PP Ball Valve Specifications

Material Of Construction	Unplasticized Poly Vinyl Chloride	Construction	Multi Piece Body
Design	Single body moulded	Test pressure	07 kg./cm2
Max working temp	60 c (consistently)	Size Range	15 m to 80 mm
Connection End	Solid Plain and Ball Valve	Standard	As per requirement

PP Flange End Ball Valve Material of Construction

Material Specification
No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEFLON)
6)	Body”O”Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEFLON)
8)	Stem “O” Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Polypropylene Flange End Ball Valve Dimensions

Size		L	T	OD	ID	H1	H
In.	MM
1/2″	15MM	129	12.5	100	13.5	130	69
3/4″	20MM	142	14	101	19	131	75
1″	25MM	160	20	123	24	165	89
1 1/2″	40MM	182	20	140	38	197	109
2″	50MM	208	22	165	50	200	121
2 1/2″	65MM	230	25	185	63	255	144
3″	80MM	251	25	201	75	255	150
4″	100MM	302	28	228	100	350	182
6″	150MM	428	30	300	150	–	236
8″	200MM	505	32	360	201	–	325
10″	250MM	570	34	425	242	–	310
12″	315MM	590	35	487	300	–	309

Top PP Ball Valve Manufacturing Company in Cairo

At Gabriel Tube Fittings, we are a leading supplier, manufacturer, and exporter of PP Ball Valve in Cairo, Egypt. Our state-of-the-art manufacturing facilities, strategically located in the Egypt, enable us to deliver high-quality solutions that meet your specific requirements. With a comprehensive inventory of Monel materials, we are well-equipped to fulfill your needs efficiently. Our commitment to excellence and customer satisfaction ensures that we consistently maintain a ready stock of Monel Manifold Valves to support your operational demands.

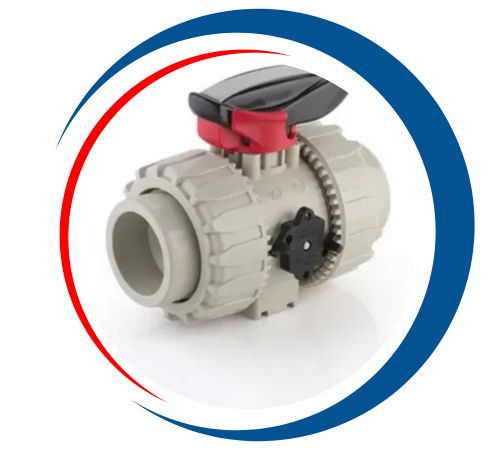

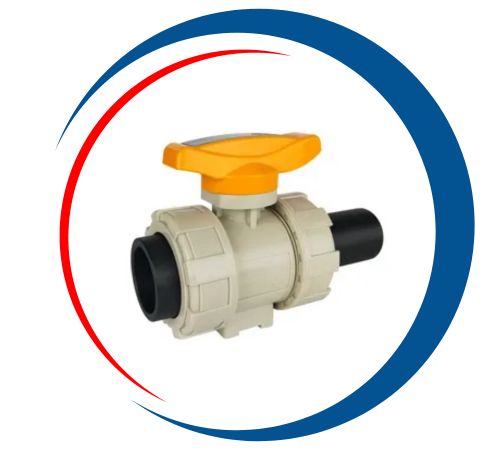

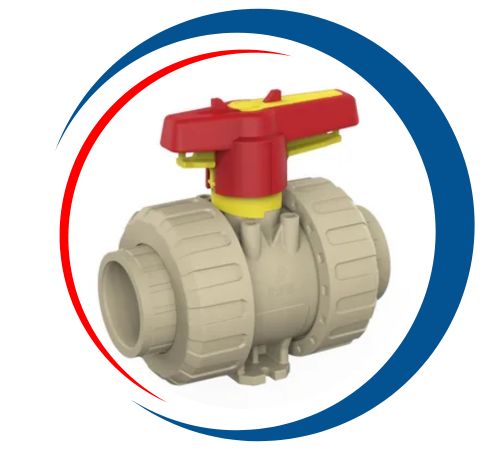

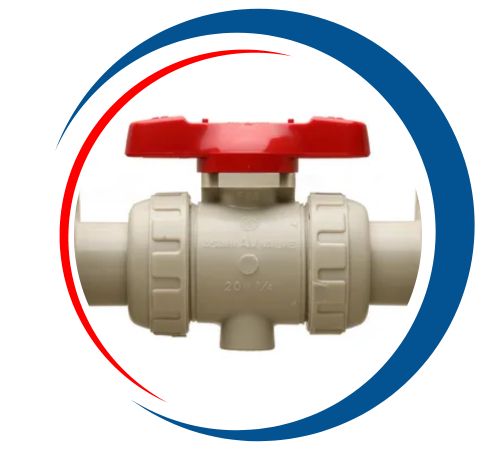

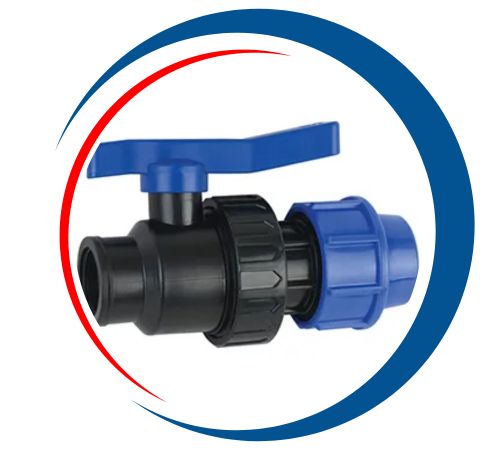

Types of PP Ball Valve

PP ball valve Manufacturer In Cairo, PP ball valve In Alexandria, PP ball valve Giza, PP ball valve Port Said. PP ball valve Jebel Ail, PP ball valve Supplier In Cairo, Egypt.

Largest Manufacturer and Supplier of PTFE Ball Valve in Cairo, Egypt

Gabriel Tube Fittings is a leading supplier and stockist of premium PTFE Ball Valve in Cairo, Egypt. Our products find extensive application across diverse industries, and we are dedicated to delivering outstanding service while ensuring high customer satisfaction. Our specialized finishing techniques distinguish us in the metal industry, enhancing the performance and durability of our valves. We are committed to consistently providing top-quality Monel Manifold Valves while effectively addressing the unique needs of our customers.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

PTFE Ball Valve Uses

PP Ball Valves find extensive use across various industries, including chemical processing, water treatment, agriculture, pharmaceuticals, and food and beverage. Their exceptional resistance to chemicals and corrosion makes them ideal for managing acids, alkalis, and other aggressive fluids. You’ll often see them in irrigation systems, pipelines, and fluid transfer applications where durability and leak-proof performance are crucial. Their lightweight design facilitates easy installation, while their low maintenance requirements contribute to cost efficiency. PP Ball Valves are suitable for both manual and automated operations, ensuring reliable and effective flow control across different systems.
