Inconel Manifold Valves

Home > Inconel >Inconel Manifold Valves

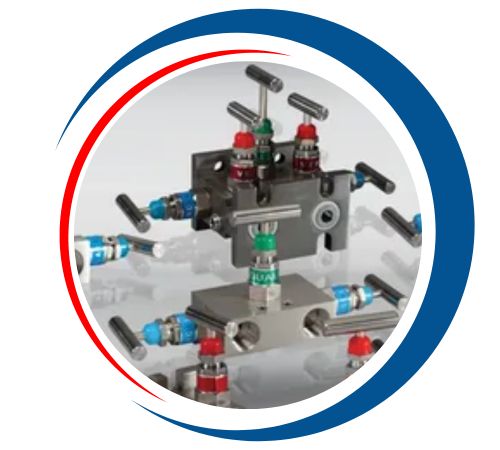

Gabriel Tube Fittings is a reputable manufacturer and supplier located in Cairo, Egypt, specializing in high-quality **Inconel Manifold Valves**. These valves are expertly crafted for precise control, isolation, and regulation of fluids in critical instrumentation and process systems. They guarantee leak-proof operation, outstanding corrosion resistance, and long-lasting reliability, even in harsh, high-temperature industrial settings. Adhering to strict international standards, Gabriel Tube Fittings provides Inconel Manifold Valves that excel in mechanical strength, durability, and safe operation for demanding applications.

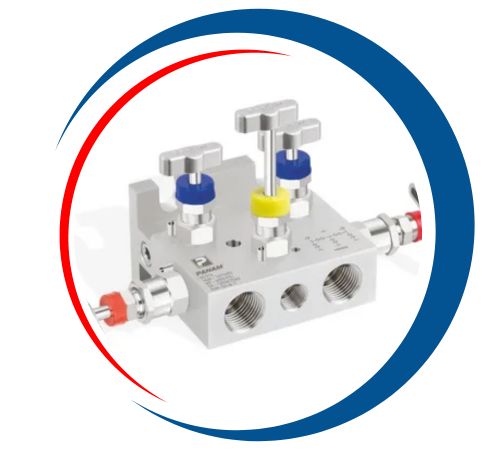

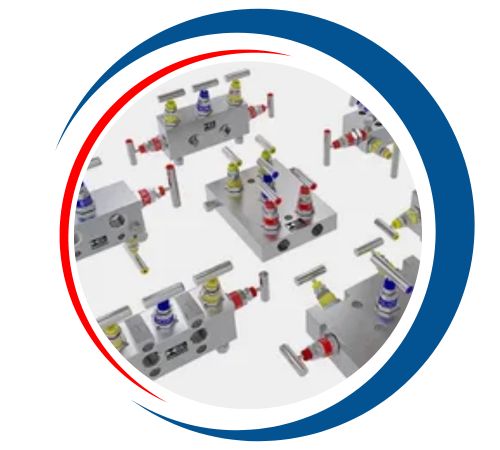

Inconel 3 Way Manifold Valves Dealer In Cairo, Inconel 2 Way Manifold Valve Exporter In Giza, Inconel Instrument Manifold Valves Manufacturer In Alexandria, Incoloy Manifold Valves Supplier In Cairo, Inconel Alloy 5 Way Manifold Valves Suppliers In Giza, Inconel Valve Manifold Manufacturers in Cairo, Egypt.

Constructed from nickel-chromium-based superalloys like Inconel 600 or 625, these valves contain significant amounts of nickel and chromium, along with molybdenum and iron. This unique composition offers remarkable resistance to oxidation, pitting, and crevice corrosion, even in high-temperature and aggressive chemical environments. They boast high tensile strength, excellent toughness, and dependable performance under high pressure and corrosive conditions, ensuring they last for years.

Inconel Manifold Valves Specifications

BRAND NAME	TU-LOK
VALVE SIZE	1/8″ TO 1″
THREAD	NPT, BSPP, BSPT
CONNECTION	THREADED, FLANGE END
TYPE	R TYPE, T TYPE, H TYPE
FUNCTION	2 WAY, 3 WAY, 5 WAY
BODY SHAPE	SQUARE, RECTANGLE
PRESSURE RATING	1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15,000 PSI
ORIFICE SIZE	2 MM TO 9.5 MM
MEDIA TEMPERATURE	(-120* C TO 500*C ) RANGE AS PER PRESSURE
BODY TYPE	BAR STOCK, FORGED
HANDLE	BAR T-HANDLE
PACKING DETAILS	BOX PACKING, WOODEN PALLET
EQUIVALENT BRANDS	SWAGELOK, PARKER, ROSE MOUNT, HAMLET, OLIVER VALVES, HOKE
MATERIAL	INCONEL

Inconel Manifold Valve Chemical Composition

Inconel	Element (% By Mass)
Inconel	Mn	Cr	Ni	Nb	Mo	Fe	Al	Co	Si	Cu	S	Ti	C	B	P
600	1.0	14.0–17.0	72.0			6.0–10.0			0.5	0.5	0.015		0.15
617	0.5	20.0–24.0	44.2–56.0		8.0–10.0	3.0	0.8–1.5	10.0–15.0	0.5	0.5	0.015	0.6	0.15	0.006	0.015
625	0.5	20.0–23.0	58.0	3.15–4.15	8.0–10.0	5.0	0.4	1.0	0.5		0.015	0.4	0.1		0.015
690	0.35	30	59.5			9.2	0.02		0.35	0.01	0.003		0.019
718	0.35	17.0–21.0	50.0–55.0	4.75–5.5	2.8–3.3	Balance	0.65–1.15	1.0	0.35	0.2–0.8	0.015	0.3	0.08	0.006	0.015
X-750	1.0	14.0–17.0	70.0	0.7–1.2		5.0–9.0	0.4–1.0	1.0	0.5	0.5	0.01	2.25–2.75	0.08

Inconel Manifold Valve Mechanical Properties

Yield Strength 0.2% Proof (MPa) min	Tensile Strength (MPa) min	Elongation (% in 50mm) min	Hardness
			Brinell (HB) max	Rockwell B (HR B) max
Psi – 75,000 , MPa – 517	Psi – 1,35,000 , MPa -930	42.5	–	–

Top Inconel Manifold Valve Manufacturing Company in Cairo

At Gabriel Tube Fittings, we are a leading supplier, manufacturer, and exporter of Inconel Manifold Valves in Cairo, Egypt. Our state-of-the-art manufacturing facilities, strategically located in the Egypt, enable us to deliver high-quality solutions that meet your specific requirements. With a comprehensive inventory of Monel materials, we are well-equipped to fulfill your needs efficiently. Our commitment to excellence and customer satisfaction ensures that we consistently maintain a ready stock of Monel Manifold Valves to support your operational demands.

Types of Inconel Manifold Valve

Inconel Manifold Valve Equivalent Grades

STANDARD	UNS	WERKSTOFF NR.	BS	OR	JIS	AFNOR	GOST	EN
Incoloy 800H Pipe	N08810	1.4958 / 1.4876	NA 15(H)	XH32T	NCF 800H	Z8NC33-21	ЭИ670	X5NiCrAlTi31-20
Incoloy 800 Pipe	N08800	1.4876	NA 15	XH32T	NCF 800	Z8NC32-21	ЭИ670	X10NiCrAlTi32-20
Incoloy 800HT Pipe	N08811	1.4859 / 1.4876	NA 15(HT)	XH32	NCF 800HT	–	ЭИ670	X8NiCrAlTi32-21

UNS No	Grade	Old British		Euronorm		Japanese JIS	GOST
UNS No	Grade	En	BS	AFNOR	No	Japanese JIS	GOST
N06601	Inconel 601	NiCr23Fe	NA 49	NC23FeA	2.4851	NCF 601	XH60BT
N06625	Inconel 625	NiCr22Mo9Nb	NA 21	NC22DNB4M	2.4856	NCF 625	ХН75МБТЮ
N06600	Inconel 600 Pipe	NiCr15Fe	NA 13	NC15FE11M	2.4816	NCF 600	МНЖМц 28-2,5-1,5
N08825	Incoloy 825	NiCr21Mo	NA 16	NFE30C20DUM	2.4858	NCF 825	ЭП703

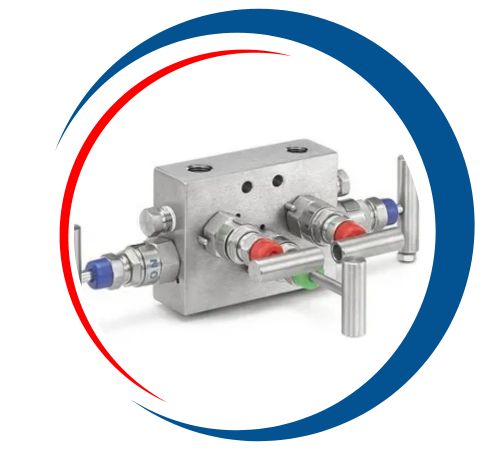

Inconel H Series Manifold Valves Dealer In Cairo, Inconel Hydraulic Manifold Exporter In Cairo, Inconel R - Type Manifold Valve Dealer In Alexandria, Inconel Double Block Bleed Valves In Cairo, Inconel Alloy Three Way T- Type Manifold Valves Alexandria, Inconel Block and Bleed Valves Supplier In Giza, Inconel Alloy Bellows Sealed Manifolds, Inconel Instrumentation Manifold Valves Manufacturer In Cairo, Egypt.

Largest Manufacturer and Supplier of Inconel Manifold Valve in Cairo, Egypt

Inconel Manifold Valves find extensive use in the oil and gas, petrochemical, chemical processing, power generation, and marine industries. They are perfect for instrumentation lines, hydraulic circuits, and process control systems that demand precise flow regulation, leak-free operation, and resistance to harsh media. With their impressive mechanical strength, durability, and corrosion resistance, Inconel Manifold Valves deliver safe, efficient, and reliable performance in even the most challenging industrial applications.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Inconel Manifold Valve Uses

Inconel manifold valves are widely used in industries requiring high performance in extreme environments. In the oil and gas sector, they control the flow of high-pressure, corrosive fluids in pipelines and wellheads. In chemical processing, they handle aggressive chemicals and high temperatures, ensuring safe and efficient fluid control. Aerospace industries use these valves in jet engines and gas turbines due to their resistance to extreme heat and oxidation. Additionally, they are employed in power generation plants and marine applications, where corrosion and high temperature resistance are critical.
