**Gabriel Tube Fittings**, located in Cairo, Egypt, specializes in manufacturing and supplying top-notch **Hydraulic Swivel Fittings** that deliver flexible, leak-proof connections in dynamic hydraulic systems. These fittings are expertly designed to allow controlled rotation under pressure, which helps alleviate stress on hoses and tubing, reducing the chances of twisting, kinking, or premature wear.

CS Hydraulic Swivel Adapter Supplier in Cairo, Hydraulic Swivel Adapter Distributor in Cairo, Hydraulic Swivel Connector Manufacturer in Alexandria, Egypt, CS Hydraulic Swivel Union Stockist in Port Said, Hydraulic Swivel Adapter Supplier in Giza, Hydraulic Swivel Connector Stockist in Cairo, CS Hydraulic Swivel Union Supplier in Alexandria, Hydraulic Swivel Adapter Exporter in Giza, Egypt

**Hydraulic swivel fittings** are crucial components in machinery that experiences movement or vibration, such as **excavators, cranes, injection molding machines, and mobile hydraulic systems**. Gabriel’s swivel fittings are precision-engineered from durable materials like **carbon steel, stainless steel, and specialty alloys**, ensuring exceptional durability, corrosion resistance, and long-lasting performance even under high-pressure conditions—typically rated up to **6000 PSI**, depending on the configuration.

Hydraulic Swivel Fittings Specifications

MATERIAL	MS, CS, SS 304 ,SS 304L , SS 316 ,SS 316L, SS 316TI ( 1.4571) , BRASS , COPPER , DUPLEX , SUPER DUPLEX , INCONEL , MONEL , HASTELLOY , 904L , 6MO, TITANIUM , ALUMNIUM, ALLOY 20
MATERIAL		WORKING PRESSURE	UPTO 700 BAR
SIZE RANGE	1/8″ TO 2″
BODY TYPE	BAR STOCK
ACCESSORIES	O-RING, DOWTY SEAL , COPPER WASHER , ED SEAL, CUTTING RING , NUT
O-RING & SEALS	NBR ( -35C TO 100 C ) VITON (-25C TO 200 C) , PTFE – (-60C TO 240)
SURFACE	CARBON STEEL -TRIVALENT ZINC PLATED , YELLOW PLATTING , BLACK PHOSPHATED,
SURFACE	STAINLESS STEEL – EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH
TEMPERATURE	STEEL – (-40* C TO 120C) ,STAINLESS STEEL – (-60C TO 400C) BRASS – (-60C TO 175*C)

Top Hydraulic Swivel Fittings Manufacturing Company in Cairo

These fittings offer **360-degree rotation** and come in a variety of thread types and connection standards, including **NPT, BSP, JIC, ORFS, and SAE**, making them compatible with a wide array of hydraulic hoses and tubing systems. Gabriel’s swivel designs effectively prevent leaks at rotating joints, extend hose life, and enhance the reliability and safety of equipment.

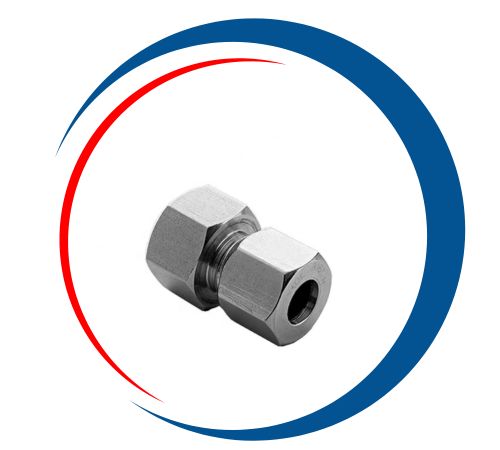

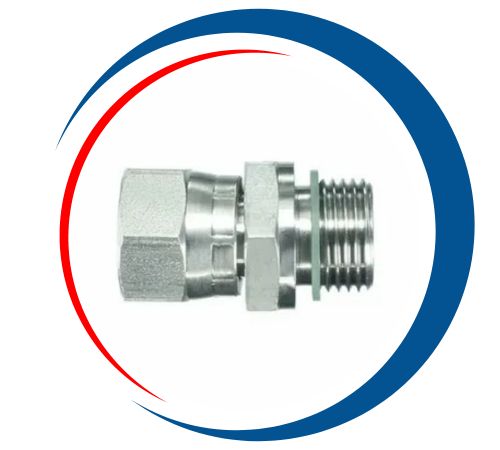

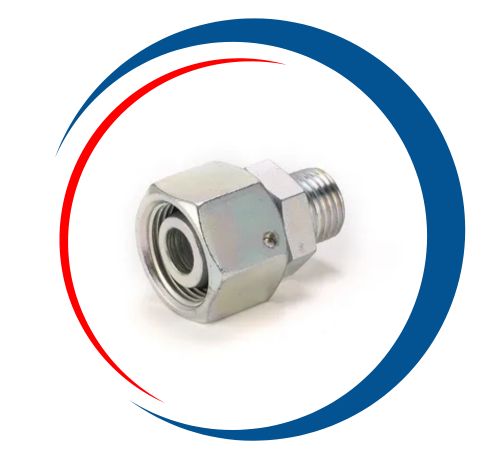

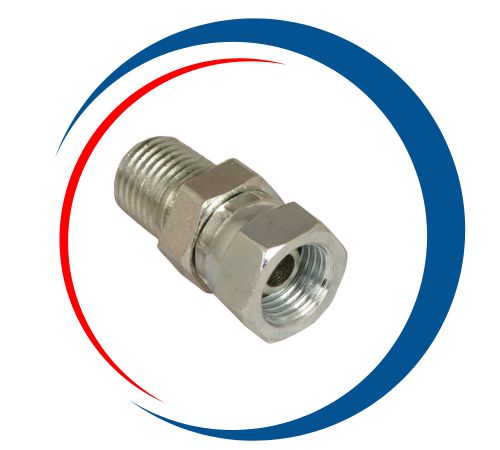

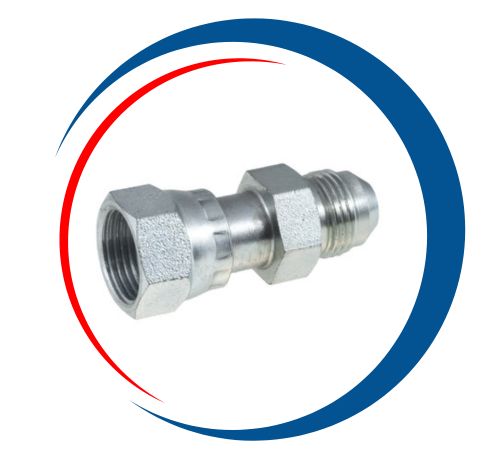

Types of Hydraulic Swivel Fittings

Dimensions of Hydraulic Swivel Fittings

SERIES			TUBE OD.	S1	S2	L2	I2	I5	D1	d1	PART NO.
SERIES			TUBE OD.	S1	S2	L2	I2	I5	D1	d1	PART NO.	METRIC SIZE TUBE	L	250 Kg/cm2	6	12	14	27	12	26	6	M12 X 1.5	SwE6L
8	14	17	29	14	27.5	8	M14 X 1.5	SwE8L
10	17	19	30	15	29	10	M16 X 1.5	SwE10L
12	19	22	32	17	29.5	12	M18 X 1.5	SwE12L
15	22	27	36	21	32.5	15	M22 X 1.5	SwE15L
160 Kg/cm2	18	27	32	40	23.5	35.5	18	M26 X 1.5	SwE18L
160 Kg/cm2	22	30	36	44	27.5	38.5	22	M30 X 2	SwE22L
100 Kg/cm2	28	36	41	47	30.5	41.5	28	M36 X 2	SwE28L
	35	46	50	56	34.5	51	35	M45 X 2	SwE35L
	42	55	60	63	40	56	42	M52 X 2	SwE42L
H	630 Kg/cm2	6	14	17	31	16	27	6	M14 X 1.5	SwE6L
		8	17	19	32	17	27.5	8	M16 X 1.5	SwE8L
		10	19	22	34	17.5	30	10	M18 X 1.5	SwE10L
		12	22	24	38	21.5	31	12	M20 X 1.5	SwE12L
		14	22	27	40	22	34.5	14	M22 X 1.5	SwE14L
	400 Kg/cm2	16	24	30	43	24.5	36.5	16	M24 X 1.5	SwE16L
		20	30	36	48	26.5	44.5	20	M30 X 2	SwE20L
		25	36	46	54	30	50	25	M36 X 2	SwE25L
	250 Kg/cm2	30	44	50	62	35.5	55	30	M42 X 2	SwE30L
	250 Kg/cm2	38	55	60	72	41	63	38	M52 x 2	SwE38L

Hydraulic Swivel Union Supplier in Port Said, SS Hydraulic Swivel Union Exporter in Giza, Hydraulic Swivel Fittings Distributor in Cairo, SS Swivel Reducer Adapter Exporter in Cairo, CS Hydraulic Swivel Union Manufacturer in Cairo, SS Hydraulic Swivel Union Cross Supplier in Port Said, Hydraulic Swivel Adapter Manufacturer in Alexandria, Egypt

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Hydraulic Swivel Fittings in Cairo, Egypt

Perfect for high-performance hydraulic applications, **Gabriel’s Hydraulic Swivel Fittings** guarantee smoother operation, reduced maintenance, and increased system longevity, even in the most demanding industrial settings.

Hydraulic Swivel Fittings Uses

Hydraulic Swivel Fittings are used to connect hydraulic hoses and components, allowing for rotation, preventing the hoses from twisting or moving They are often used on equipment where parts must move or rotate, such as cranes ; construction machinery and agricultural machinery. These fillers improve the efficiency of the water treatment system under high pressure and reduce pipe fouling. Coil fittings are also important in aerospace and industrial robotics, where smooth motion is required for system performance and durability.
