Gabriel Tube Fittings, located in Cairo, Egypt, has built a solid reputation as a reliable manufacturer and supplier of high-performance fluid control components, including their standout product, the 3000 PSI Needle Valve. With a strong focus on quality, precision engineering, and customer satisfaction, they cater to a diverse array of industries such as oil & gas, petrochemical, and industrial processing. The 3000 PSI Needle Valve is expertly designed to provide precise flow control even under high-pressure conditions, making it a vital part of critical systems. With their technical know-how and dependable support, Gabriel Tube Fittings guarantees durability, efficiency, and top-notch performance in every product they deliver.

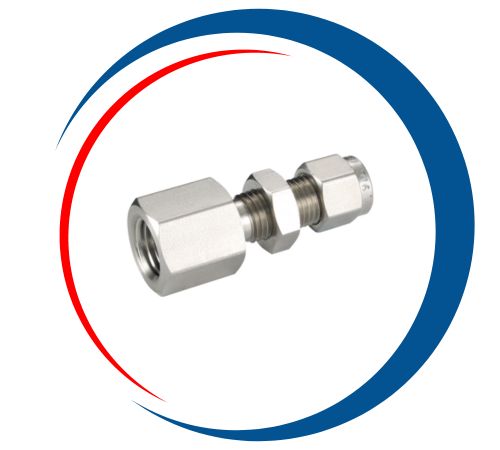

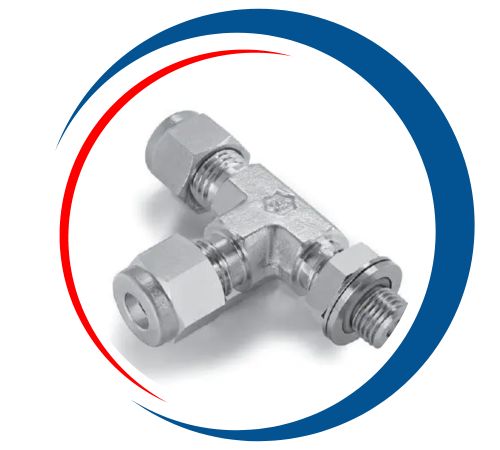

400 Bar Hydraulic Fittings are typically composed of high-strength stainless steel or carbon steel, ensuring exceptional durability and resistance to corrosion. They exhibit impressive mechanical properties, including high tensile strength, excellent fatigue resistance, and the ability to maintain structural integrity under high-pressure conditions. These fittings can withstand pressures up to 400 Bar, making them ideal for demanding applications in industries such as oil and gas, manufacturing, and construction. Advantages include enhanced safety, reduced risk of leaks, and longevity, ensuring reliable performance in critical hydraulic systems.
| BRAND | Gabriel Tube Fittings |
| DESIGN STANDARD | DIN 2353/ ISO 8434-1 |
| MATERIAL | MS, CS, SS 304 ,SS 304L , SS 316 ,SS 316L, SS 316TI ( 1.4571) , BRASS , COPPER , DUPLEX , SUPER DUPLEX , INCONEL , MONEL , HASTELLOY , 904L , 6MO, TITANIUM , ALUMNIUM, ALLOY 20 |
| SERIES | S- HIGH PRESSURE |
| WORKING PRESSURE | (HEAVY) S SERIES – 200 BAR TO 800 BAR |
| SIZE RANGE | S SERIES – 6S TO 38S |
| CONNECTIONS | TUBE TO TUBE , TUBE TO MALE THREAD , TUBE TO FEMALE THREAD , TUBE TO BUTT WELD , TUBE TO SOCKET WELD , TUBE TO JIC 37* , TUBE TO 24* CONE, TUBE TO SWIVEL END , TUBE TOADJUSTBALE STANDPIPE |
| WELD NIPPLE TO MALE THREAD , WELD NIPPLE TO FEMALE THREAD , WELD NIPPLE TO BUTT WELD , WELD NIPPLE TO SOCKET WELD , WELD NIPPLE TO 24* CONE , WELD NIPPLE TO 37* JIC , WELD NIPPLE TO SWIVEL | |
| BODY TYPE | FORGED, BAR STOCK |
| ACCESSORIES | O-RING, DOWTY SEAL , COPPER WASHER , ED SEAL, CUTTING RING , NUT |
| O-RING & SEALS | NBR ( -35*C TO 100* C ) VITON (-25*C TO 200* C) , PTFE – (-60*C TO 240*) |
| SURFACE | CARBON STEEL -TRIVALENT ZINC PLATED , YELLOW PLATTING , BLACK PHOSPHATED, |
| STAINLESS STEEL – EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH | |
| TEMPERATURE | STEEL – (-40* C TO 120*C) ,STAINLESS STEEL – (-60*C TO 400*C) BRASS – (-60*C TO 175*C) |
| EQUIVALENT BRANDS | PARKER, HY-LOK , DK-LOK , STAUFF, HYDAC , VOSS |
| APPLICATIONS & INDUSTRIES | CONSTRUCTION EQUIPMENTS , DRILLING PLATFORMS, HYDRO POWER PLANTS , MACHINE TOOLS , RAILWAY TECHNOLOGY , SHIPBUILDING , WIND TUBRINE , MOBILE HYDRAULIC EQUIPMENT , MINNING , STATIONARY HYDRAULIC EQUIPMENT, INDUSTRIAL HYDRAULICS, INJECTION MOULDING MACHINERY , ALUMINUM DIE-CASTING MACHINERY, SINTERING MACHINERY, STEEL MILLS, HYDRAULIC PRESSES, PAPER PROCESSING MOBILE HYDRAULICS, BUILDING MACHINERY, AGRICULTURAL FORESTRY, LIFTING & MATERIAL HANDLING EQUIPMENT |
| MATERIAL DESIGNATOR | STAINLESS STEEL – ASTM A 276 , ASTM 182 |
| STEEL – ASTM 108/A105, JIS G4051 S20C, S45C,/G3201 SF440A. | |
| BRASS – ASTM B16 UNS C36000 , ASTM B282 ALLOY 37700 , JIS H3250 C3604 , C3771 , JIS H3250 C3771. |
When it comes to the 3000 PSI Needle Valve, Gabriel Tube Fittings typically uses corrosion-resistant stainless steel grades like SS 316 or SS 304, ensuring it stands the test of time in tough environments. This valve boasts a sturdy body, a precision-threaded stem, and leak-tight seating for secure flow control. It offers impressive tensile strength, can handle pressures up to 3000 PSI, and shows excellent fatigue performance. The mechanical properties of the material include a tensile strength of about 515 MPa and a yield strength of around 205 MPa, along with good hardness and elongation to endure thermal and mechanical stress.
The 3000 PSI Needle Valve from Gabriel Tube Fittings is a go-to choice for applications that need precise flow regulation in high-pressure settings. It’s commonly found in industries like oil and gas, chemical processing, power generation, and laboratory instrumentation. This valve is perfect for isolating or throttling fluids and gases, especially in instrumentation lines, hydraulic systems, and testing equipment. Thanks to its fine-threaded stem design, it allows for gradual flow adjustments, which is essential for keeping systems stable. Its robust construction ensures reliability even in extreme conditions, making it a top pick for engineers and system designers who prioritize safety, precision, and durability in critical applications.
Contact us to get a quick quote for your requirement.
400 Bar Hydraulic Fittings are essential components in various high-pressure applications across multiple industries. They are widely used in hydraulic systems for machinery and equipment in construction, oil and gas extraction, and manufacturing. These fittings are crucial for connecting hoses and tubes in hydraulic circuits, ensuring safe and efficient fluid transfer under extreme pressure conditions. Additionally, they find applications in automotive hydraulic systems, marine equipment, and aerospace technologies, where reliability and performance are paramount. Their robust design contributes to improved operational efficiency and enhanced safety in critical applications.
Please feel free to contact us if you need any further information or for enquiry.
