Gabriel Tube Fittings is a top-notch manufacturer and supplier located in Cairo, Egypt, specializing in high-quality **Stainless Steel 317 Instrumentation Tube Fittings**. These fittings are crafted for precise and secure connections in instrumentation and process systems, guaranteeing leak-proof performance and dependable operation. With a commitment to international standards, Gabriel Tube Fittings delivers products that boast exceptional corrosion resistance, mechanical strength, and a long service life, making them perfect for high-pressure and aggressive industrial settings.
The Stainless Steel 317 Instrumentation Tube Fittings are made from a special alloyed stainless steel that includes chromium (18–20%), nickel (10–13%), and molybdenum (3–4%), all of which enhance their corrosion resistance and mechanical durability. They provide impressive tensile strength of around 500–700 MPa and outstanding toughness, ensuring reliable performance even in extreme pressure and temperature situations. These fittings are resistant to pitting, crevice corrosion, and general wear, which guarantees their long-lasting durability in tough industrial applications.
| Specifications | ASTM A182, A276, A479 / ASME SA182, SA276, SA479 |
| Size | 2mm~25mm and 1/16″~1″ |
| Thread | NPT, PT, BST, NPS, PS, BSP |
| Pressure | 6000PSI for Stainless Steel 300/1000/3000PSI for Brass |
| Types | Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
At Gabriel Tube Fittings, we are the largest supplier, manufacturer, and exporter of Stainless Steel 317 Instrumentation Tube Fittings in Cairo, Egypt. Our advanced manufacturing facilities, strategically positioned in the Egypt, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfill your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.
| Fitting Types | Size Inch | Size OD | |
|---|---|---|---|

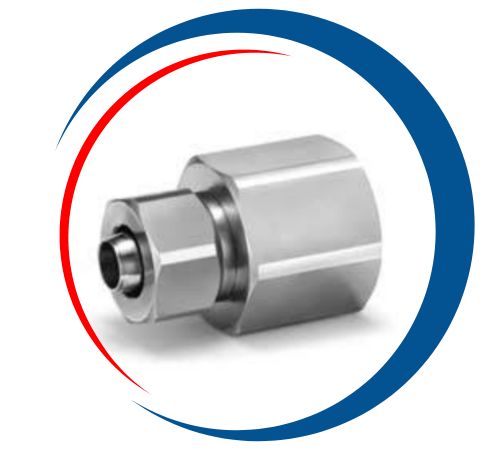

| Tube to | Female Fitting | 1/4″ to 1 1/2″ | 6mm to 38mm |
| Pipe Fitting | |||

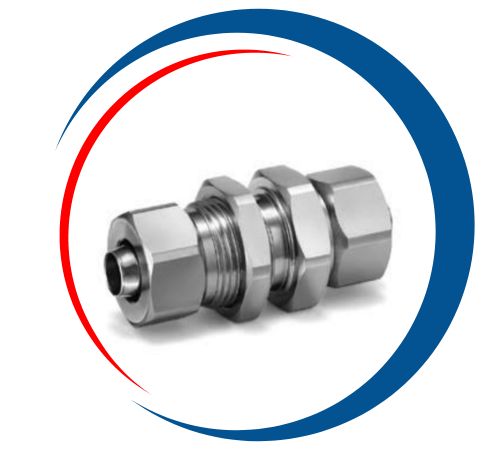

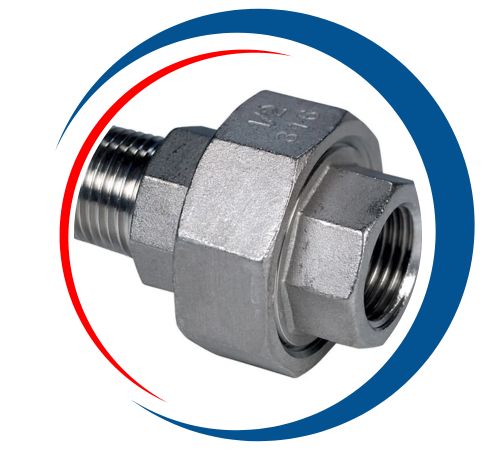

| Union | |||

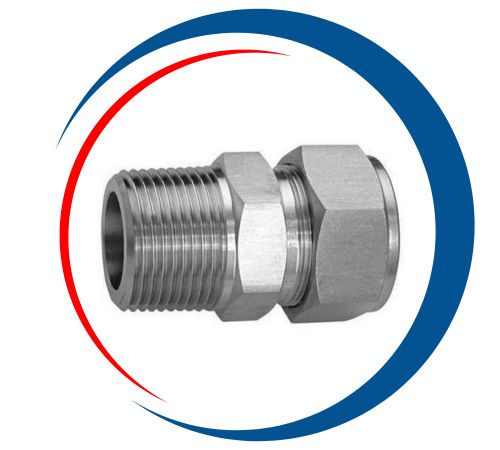

| Male Fitting | |||
| Tube Fittings Accessories |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317 | 1.4449 | S31700 | SUS 317 | – |
Contact us to get a quick quote for your requirement.
You’ll find Stainless Steel 317 Instrumentation Tube Fittings widely used across various sectors, including oil and gas, petrochemical, chemical processing, power generation, and marine industries. They’re ideal for instrumentation lines, hydraulic systems, and critical process applications where accurate fluid control and secure connections are a must. With their blend of strength, corrosion resistance, and precision engineering, these fittings ensure safe, efficient, and reliable operation in demanding industrial systems.
Stainless steel 317 instrumentation tube fittings are widely used in applications requiring high corrosion resistance and durability. Because of their excellent resistance to chemical corrosion, high temperatures and potholes, they are commonly used in the chemical, petrochemical and electrical industries These properties ensure leak-proof connections in pipeline systems that consume water or in the handling of air corrosion. It is used in oil and gas exploration, marine applications and medicine, where maintaining system integrity under extreme conditions is essential for safety and performance
Please feel free to contact us if you need any further information or for enquiry.
