Monel Manifold Valves

Home > Monel > Monel Manifold Valves

Gabriel Tube Fittings, a top-notch manufacturer and supplier located in Cairo, Egypt, proudly presents its high-quality **Monel Manifold Valves** designed for precise control in tough and corrosive environments. These valves are expertly crafted to isolate, equalize, and vent pressure instruments like transmitters and gauges. With outstanding strength and resistance to corrosion, Gabriel’s Monel manifold valves ensure dependable and long-lasting performance in industries frequently exposed to seawater, acids, or harsh chemicals.

Monel Manifold Valve Manufacturer in Cairo, Monel Hydraulic Manifold Valve Exporter in Alexandria, Monel 5 Way Manifold Valves Supplier in Giza, Monel Instrument Solenoid Valve Supplier in Port Said, Monel Instrumentation Manifold Valve In Giza, Monel 3 Way Manifold Valve In Port Said, Monel Instrument Solenoid Valve Price List in Cairo, Monel Hydraulic Manifold Valves Manufacturer in Cairo, Monel High PreMonelure Manifold Valves Exporter in Alexandria, Egypt

Constructed from **Monel 400 or Monel K500**, these valves boast remarkable resistance to hydrofluoric acid, saltwater, sulfuric acid, and alkalis. Monel alloys are known for their impressive tensile strength (up to 790 MPa) and excellent toughness across a wide temperature range. Gabriel’s Monel manifold valves are meticulously machined to provide leak-tight sealing and smooth operation, even under high pressure and thermal cycling. Their sturdy design guarantees minimal maintenance and a prolonged service life in challenging process conditions.

Monel Manifold Valve Specifications

BRAND NAME	Gabriel Tube Fittings
VALVE SIZE	1/8″ TO 1″
THREAD	NPT, BSPP, BSPT
CONNECTION	THREADED, FLANGE END
TYPE	R TYPE, T TYPE, H TYPE
FUNCTION	2 WAY, 3 WAY, 5 WAY
BODY SHAPE	SQUARE, RECTANGLE
PRESSURE RATING	1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI, 15,000 PSI
ORIFICE SIZE	2 MM TO 9.5 MM
MEDIA TEMPERATURE	(-120* C TO 500*C ) RANGE AS PER PRESSURE
BODY TYPE	BAR STOCK, FORGED
HANDLE	BAR T-HANDLE
PACKING DETAILS	BOX PACKING, WOODEN PALLET
EQUIVALENT BRANDS	SWAGELOK, PARKER, ROSE MOUNT, HAMLET, OLIVER VALVES, HOKE
MATERIAL	MONEL

Monel Manifold Valve Chemical Composition

Designation

Sonstige Autres-Other %

Co%

Cr%

Ni%

Mo%

Cu%

Ai%

Ti%

Nb/Cb Ta%

Fe%

Monel 400

Mn 1.00

–

0.012

–

65.00

–

32.00

–

1.05

Monel 401

Si 0.025; Mn 2.025

–

0.010

–

43.00

–

53.00

–

0.075

Monel 404

Mn 0.010; Si 0.010;S o.0024

–

0.015

52.00-57.00

–

rest/bal

0.005

–

0.050

Monel 502

Mn 1.05;Si 0.05; S 0.0010

–

0.010

–

63.00-17.00

–

rest/bal

2.05-3.05

0.050

–

2.00

Monel K 500

Mn 0.08

–

0.013

–

64.00

–

30.00

2.08

0.06

–

1.00

Monel R 405

Mn 1.00; S 0.004

–

0.015

–

66.00

–

31.00

–

1.02

Monel Manifold Valve Mechanical Properties

Tensile strength, Yield	240 Mpa
Tensile strength, Ultimate	550 Mpa
Elongation at Break	48%

Top Monel Manifold Valve Manufacturing Company in Cairo

**Monel Manifold Valves** find extensive application in **offshore oil and gas platforms, marine systems, chemical processing plants, and power generation facilities**. These valves are perfect for handling brine, acidic fluids, and corrosive gases, where stainless steel might fall short. Available in 2-valve, 3-valve, and 5-valve configurations, Gabriel’s Monel manifold valves offer a range of end connections, including NPT, BSP, and tube fittings. Built to meet international standards and pressure-tested for critical applications, they deliver unmatched durability and performance in demanding operating conditions.

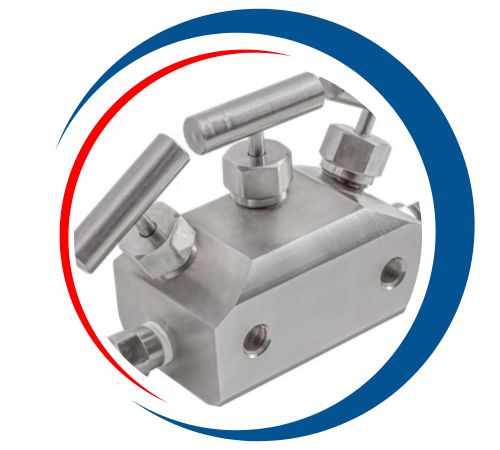

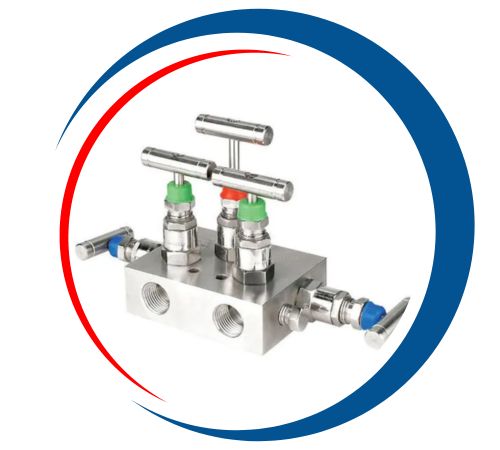

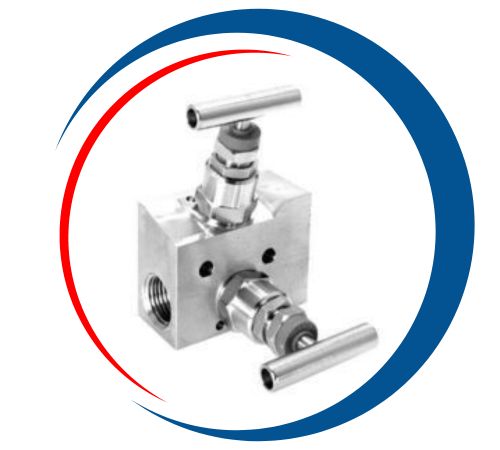

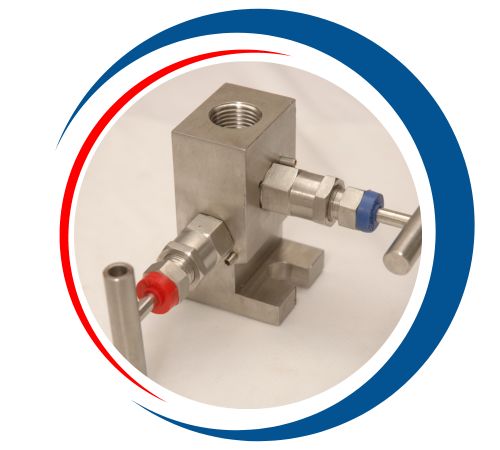

Types of Monel Manifold Valve

Monel Manifold Valve Equivalent Grades

STANDARD	UNS	WERKSTOFF NR.	BS	JIS	AFNOR	GOST	EN
Monel K500	N05500	2.4375	–	–	–	–	–
Monel 400	N04400	2.4360	NA 13	NW 4400	NU-30M	МНЖМц 28-2,5-1,5	NiCu30Fe

Monel Manifold Valve, Monel Manifold Valve in Giza, Monel Instrumentation Manifold Valve Price in Cairo, Monel Instrument Solenoid Valve Supplier in Alexandria, Monel Manifold Valve Manufacturer in Giza, Monel 5 Way Manifold Valve Price in Port Said, Monel 2 Way Manifold Valve Supplier and Manufacturer in Cairo, Monel 3 Way Manifold Valve in Cairo, Egypt.

Largest Manufacturer and Supplier of Monel Manifold Valve in Cairo, Egypt

Gabriel Tube Fittings is a leading supplier and stockist of premium Monel Manifold Valves in Cairo, Egypt. Our products find extensive application across diverse industries, and we are dedicated to delivering outstanding service while ensuring high customer satisfaction. Our specialized finishing techniques distinguish us in the metal industry, enhancing the performance and durability of our valves. We are committed to consistently providing top-quality Monel Manifold Valves while effectively addressing the unique needs of our customers.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Monel Manifold Valve Uses

Monel Manifold Valves are widely used in various industries due to their exceptional corrosion resistance and mechanical properties. They are particularly effective in marine applications, where exposure to seawater is a concern. These valves are also utilized in chemical processing plants, oil and gas refineries, and power generation facilities, where they handle aggressive fluids and gases. Additionally, Monel Manifold Valves are employed in the aerospace industry for fuel systems and in food processing for their hygienic qualities. Their versatility makes them an ideal choice for demanding environments.
