Gabriel Tube Fittings is a leading manufacturer and supplier based in Cairo, Egypt, specializing in high quality tube fittings and Male Connector NPT products. Committed to providing excellence and innovation, we meet the needs of a variety of industries, ensuring excellent performance and longevity in every product. Our extensive product range includes customizable solutions to meet specific customer needs, backed by exceptional customer service. Trust Gabriel Tube Fittings for reliable, precision-made products that increase performance and safety in your application.

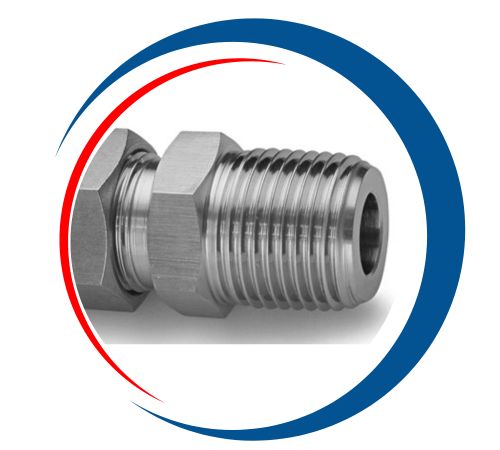

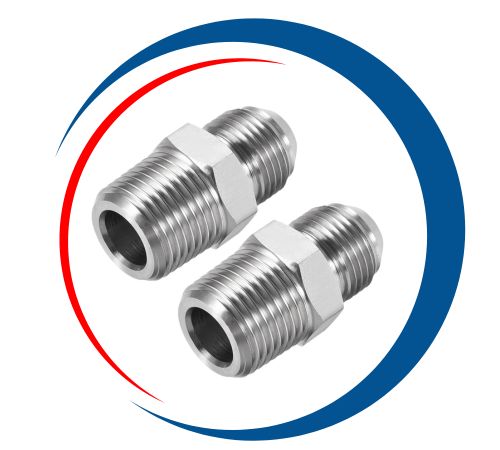

**Gabriel Tube Fittings**, located in Cairo, Egypt, specializes in manufacturing and supplying top-notch **Male Connector NPT Fittings**. These fittings are engineered for dependable, leak-proof connections in high-pressure instrumentation, hydraulic, and pneumatic systems. Each fitting boasts a **male NPT (National Pipe Taper) thread on one end** and a tube connection on the other, facilitating secure transitions between tubing and threaded pipe components.

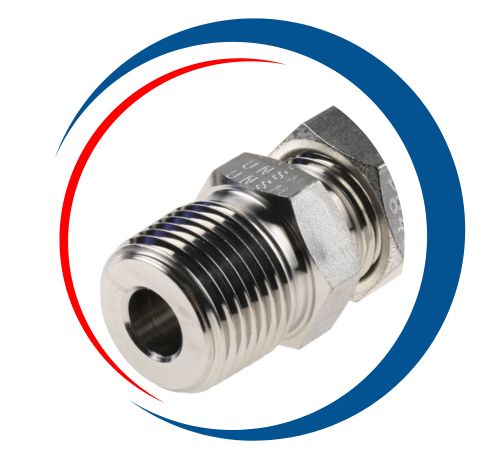

Constructed from high-quality materials like **stainless steel, carbon steel, brass**, and corrosion-resistant alloys such as **Monel, Inconel, and Super Duplex**, Gabriel’s male connectors are designed to endure extreme pressure, temperature, and harsh environments. The tapered NPT threads ensure a pressure-tight seal that meets ASME B1.20.1 standards, guaranteeing compatibility and safety in critical applications.
| MALE CONNECTOR NPT – IMPERIAL | ||||||||||||||
| BSP Tr thread | Tube O.D | A | C | D | R | W | X | Min bore | ||||||
| inch | inch | mm | inch | mm | inch | mm | inch | mm | inch | inch | mm | inch | mm | |
| 1/8 | 1/4 | 1.28 | 32.5 | 0.70 | 17.8 | 0.98 | 24.9 | 0.28 | 7.1 | 9/16 | 0.54 | 13.7 | 0.16 | 4.1 |
| 1/4 | 1/8 | 1.27 | 32.3 | 0.60 | 15.2 | 1.13 | 28.7 | 0.44 | 11.2 | 3/4 | 0.70 | 17.8 | 0.09 | 2.3 |
| 3/8 | 1/4 | 1.55 | 39.4 | 0.70 | 17.8 | 1.25 | 31.8 | 0.44 | 11.2 | 7/8 | 0.86 | 21.8 | 0.19 | 4.8 |
| 1/4 | 1/4 | 1.49 | 37.9 | 0.70 | 17.8 | 1.19 | 30.2 | 0.44 | 11.2 | 3/4 | 0.70 | 17.8 | 0.19 | 4.8 |
| 1/8 | 3/8 | 1.35 | 34.3 | 0.76 | 19.3 | 1.06 | 26.9 | 0.28 | 7.1 | 5/8 | 0.54 | 13.7 | 0.16 | 4.1 |
| 1/2 | 1/4 | 1.77 | 45.0 | 0.70 | 17.8 | 1.47 | 37.3 | 0.56 | 14.2 | 1.1/16 | 1.01 | 25.7 | 0.19 | 4.8 |
| 1/4 | 3/8 | 1.54 | 39.1 | 0.76 | 19.3 | 1.25 | 31.8 | 0.44 | 11.2 | 3/4 | 0.70 | 17.8 | 0.25 | 6.4 |
Contact us to get a quick quote for your requirement.
**Male Connector NPT fittings** find their place in **oil & gas, chemical processing, power generation, marine, and instrumentation** systems, where resistance to vibration, precise alignment, and long-lasting durability are crucial. With meticulous machining, smooth surface finishes, and rigorous quality control, Gabriel provides fittings that promise reliable, leak-free performance.
Male Connector NPT is widely used in plumbing, gas, water installation applications, providing reliable and leak-proof connections between pipes and fittings In general using industrial systems use to connect pipes and valves, pumps and tanks, as well as HVSC for fresh air. It facilitates safe connections in pipeline systems in the oil and gas industry, ensuring the safe delivery of water and gas. Its compatibility with a variety of materials, such as copper, plastic and metal, makes it versatile, making it important in residential and commercial applications.
Please feel free to contact us if you need any further information or for enquiry.
