Incoloy 800 Tube Fittings

Home > Incoloy > Incoloy 800 Tube Fittings

Gabriel Tube Fittings, located in Cairo, Egypt, is a well-respected manufacturer and supplier of Incoloy 800 Tube Fittings, crafted for exceptional performance in high-temperature and corrosive settings. These fittings are celebrated for their remarkable strength, resistance to oxidation, and reliability, making them perfect for tough industrial applications. At Gabriel Tube Fittings, they utilize cutting-edge manufacturing technology and rigorous quality control to guarantee that every Incoloy 800 Tube Fitting adheres to international standards. Their products find extensive use in sectors like chemical processing, power generation, petrochemicals, and marine industries, where durability and precision are crucial.

Incoloy 800 Instrumentation Tube Fittings Supplier in Cairo, Incoloy 800 Double Ferrule Tube Fittings Price List in Alexandria, Nickel Alloy Twin Ferrule Fittings Manufacturer in Giza, Incoloy 800 Single Ferrule Fittings In Port Said, Incoloy 800 Bulkhead Union, Incoloy 800 Ferrule Fittings Exporter in Alexandria, Incoloy 800 Instrumentation Fittings Manufacturer in Cairo, Incoloy 800 Compression Tube Fittings in Cairo, Egypt.

Incoloy 800 Tube Fittings are constructed from a nickel-iron-chromium alloy that contains about 30–35% nickel, 19–23% chromium, and a balanced amount of iron, along with trace amounts of titanium and aluminum. This alloy offers outstanding resistance to oxidation, carburization, and sulfidation at high temperatures. The fittings boast high tensile strength (typically between 500–600 MPa) and retain their structural integrity and ductility even after prolonged exposure to heat. Their ability to resist chloride stress corrosion cracking and withstand acidic environments ensures a long service life, even in harsh industrial conditions.

Incoloy 800 Tube Fittings Specifications

Material Test Certificates (MTC) for Tube Fitting as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Specifications	ASTM B366 / ASME SB366
Size	1/16 in. to 2 in. & 2mm to 50 mm.
Dimensional Range	1/16 to 2 inches (imperial); 2 to 50 mm (metric)
Working Pressures	Upto 2000 to 8000 PSI
Thread Type	NPT – ASME B1.20.1, SAE AS71051 \| ISO/BSP Parallel – ISO 228 \| ISO/BSP Tapered – ISO 7, BS EN 10226-1 \| SAE (Unified) – ASME B1.1
End Connections	NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters
Types	Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories
Equivalent To	SWAGELOK, PARKER, DK-LOK, HOKE
Max Working Pressure	8MPa \| 1200psi Depending on The Tubing Material
Working Temperature	-40°C—250°C \| -40°F—482°F Depending on The Tubing Material
Configurations	Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End
Tube Fitting uses & application	Compression tube fitting to connect two imperial tubes (or fractional tubes), two metric tubes or, also, the connection of a metric tube at one end and a fractional/imperial tube at the other end in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc Tube Fittings useful for their extreme temperature and pressure capabilities for high/low temperatures applications, and their compatibility with aggressive fluids, compression fittings can be seen in systems varying from gas lines in refineries, plumbing etc.

Incoloy 800 Tube Fittings Chemical Composition

Grade	Ni	Fe	Cr	Cu	Ti	Al	C	Mn	S	Si
Incoloy 800	30.0-35.0	39.5 min	19.0-23.0	.75 max	.15-.60	.15-.60	.1 max	1.5 max	.015 max	1.0 max

Incoloy 800 Tube Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
7.94 g/cm3	1350-1400 ℃	Psi – 75,000 , MPa -520	Psi – 30,000 , MPa – 205	30 – 35 %

Types of Incoloy 800 Tube Fittings

Incoloy 800 Tube Fittings Equivalent Grades

STANDARD	UNS	WNR.	AFNOR	EN	JIS	BS	GOST	OR
Incoloy 800	N08800	1.4876	Z8NC32-21	X10NiCrAlTi32-20	NCF 800	NA 15	ЭИ670	XH32T

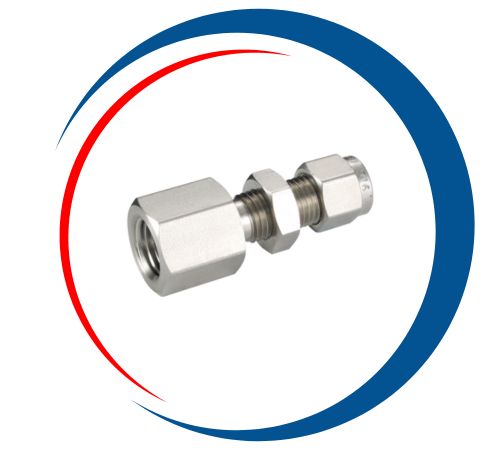

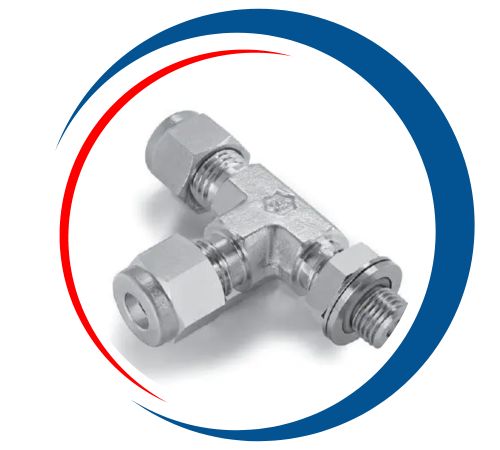

Incoloy 800 Bulkhead Union, Incoloy 800 Alloy Tube To Union, Incoloy 800 Instrumentation Tube Fittings Price in Cairo, Incoloy 800 Male Branch Tee Supplier in Alexandria, Incoloy 800 Bulk Head Female Connector Manufacturer in Giza, Incoloy 800 Single Ferrule Tube Fittings Price in Port Said, Incoloy 800 Male Run Tee Supplier And Manufacturer in Cairo, Incoloy 800 Male Elbow In Cairo, Egypt.

Largest Manufacturer and Supplier of Incoloy 800 Tube Fittings in Cairo, Egypt

Incoloy 800 Tube Fittings are commonly found in heat exchangers, boilers, furnaces, and chemical processing systems that deal with high-temperature or corrosive fluids. They are particularly suited for connecting tubes in instrumentation, power plants, and refinery systems. With their blend of strength, thermal stability, and corrosion resistance, these fittings are the go-to choice for critical operations that demand reliable and maintenance-free connections in extreme conditions.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Incoloy 800 Tube Fittings Uses

Incoloy 800 Tube Fittings are widely used in industries where high temperature and corrosion resistance are critical. In chemical processing, they are utilized in heat exchangers, piping systems, and reactors due to their stability under extreme temperatures and resistance to oxidation. The petrochemical industry uses these fittings for cracking furnaces, reformer tubing, and steam generators. In power generation, Incoloy 800 fittings are employed in superheaters and reheaters, ensuring durability and performance in high-stress environments. Their reliability under harsh conditions makes them essential for a range of demanding industrial applications.
